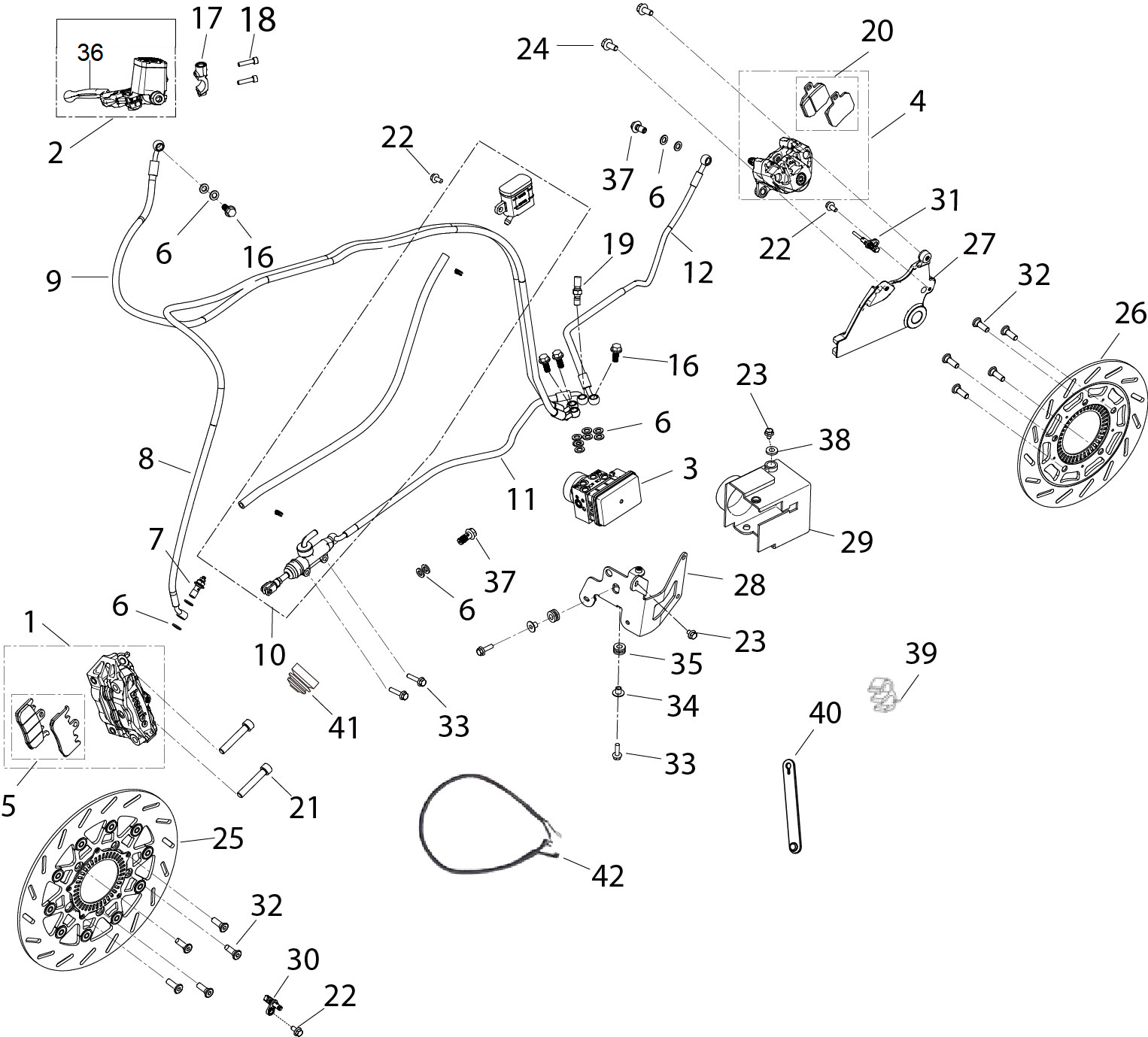

Hover a part to find it on the drawing · hover the drawing to magnify
No.PartPrice
1
Front brake caliper assy21Q00.365020.003 · 1 per bikeAsk us — we can order it
2
Front disc brake upper pump assembly21R00.365020.002 · 1 per bikeAsk us — we can order it
3
Abs control unit21R00.361010 · 1 per bikeAsk us — we can order it
6
Copper gasket for oil pipe sealing21M00.367040 · 16 per bikeAsk us — we can order it
8
Front brake lower hose21R00.365050.003 · 1 per bikeAsk us — we can order it
9
Front brake upper hose21R00.365060.002 · 1 per bikeAsk us — we can order it
10
Rear master cylinder assy21R00.365030.001 · 1 per bikeAsk us — we can order it
11
Rear master cylinder upper oil pipe21R00.365070.002 · 1 per bikeAsk us — we can order it
12
Rear master cylinder assy lower oil pipe21R00.365080.004 · 1 per bikeAsk us — we can order it
19
Rear brake switch21N00.483060 · 1 per bikeAsk us — we can order it
28
Abs control unit support21R00.303010 · 1 per bikeAsk us — we can order it
30
Front wheel speed sensor21N0A.336010.002 · 1 per bikeAsk us — we can order it
31
Rear wheel speed sensor21R00.336020 · 1 per bikeAsk us — we can order it
36
Front disc brake upper pump handle21R00.365090 · 1 per bikeAsk us — we can order it
38
Flat washer φ6×φ18×1.500961.061815.0DW · 1 per bikeAsk us — we can order it
39
Two-hole m buckle one large and one small21M00.502010.001 · 1 per bikeAsk us — we can order it
41
Connecting wire, front brake switch21R00.481080 · 1 per bikeAsk us — we can order it
